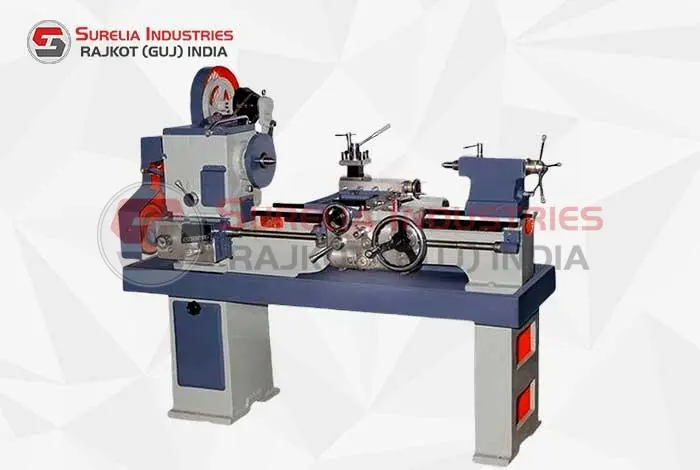

Light Duty Lathe Machine - An Ideal Tool For Industries
A light duty lathe machine is designed for small-scale jobs in workshops and tool rooms. Using a light-duty lathe in the workshop, one may simply turn, drill, groove, shape, cut, knurl, and make threads on tougher metal or wooden surfaces. As developed for small-scale enterprises and workshops, this is generally a compact machine tool that permits effective storage without consuming much room at the workplace.
Surelia Industries is one of the well-known Light Duty Lathe Machine Manufacturers in India and offers a wide selection of standard and customized designs to meet the individual needs of its clients. This Lathe Machine is built from high-quality raw materials and is cost-effective.
Short Details Of Product
- Height of Center: 190mm (7.5”)
- Width of Bed: 240mm (9.5”)
- Swing Dia. Over Bed: 300mm (12”)
- Swing Dia. Over Cross Slide: 170mm (6.5”)
- Spindle Bore: 40mm (1.55”)
- Admit Between Centers: 380mm to 1115mm
Buy From Trusted Light duty Lathe Machine Suppliers
This machine is designed for manufacturing work, tool rooms, and collegiate applications. We do severe quality inspections during the manufacturing process of these lathe machines to ensure their high quality. Bed, headstock, tailstock, saddle, lead screw, tool rest, countershaft, top slide, cross slide, chuck, and gears are some of the most important components of our light-duty lathe. A contemporary multifunctional lathe machine can make exact final products from hard metal, plastic, and wood surfaces, making it the greatest solution for small-scale enterprises with limited space.
All Details Of Our Product
- Surface 5″
- Leading Screw 1″
- Change Gear 16 D.P
- Compound 3 ½””
- Main Gear Straight
- Pan Gear 14 D.P
- One Leg Box Type One Leg C-type
- Plain V-Belt
- Long lasting
- Sturdy construction
- Smooth performance
- Precisely engineered
- Low noise
- Energy Efficiency
- Cost effective
- Makes industrial work easier, quicker, defect-free & reliable
- Advanced Design
- Bed made of 25 Grade Cast Iron of 180 BHN hardened, inspected with Microlevel, Hardness Tester & Straight edge.
- It has a square shaped Tail Stock with hardened & ground tail stock Spindle made of alloy steel having external & internal grinding.
- Head Stock is available in all geared and is totally enclosed oil bath system & gear made from EN-8 (Liquid night riding).
- Apron is fully enclosed oil bath system with lever type arrangement for automatic feeds.
- Boring of Head Stock is performed on WMW boring machine fitted with induction hardened & ground spindle made of alloy steel.
- Color options are Oasis Green / Blue & White (Two tone)
| Standard Technical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Specifications | Admit Between Center | Width of Bed | Swing Over Bed | Swing Over Carriage | Swing Over Cross Slide | Swing in Gap Bed | Weight | Floor Space | |
| MODEL | Bed Length | Center Height 190mm (7.5″) | KG | L x W | |||||
| SILD – 3 | 3.5ft (1065mm) | 380mm(15″) | 240mm(9.5″) | Dia. 300mm(12″) | Dia. 230mm(9″) | Dia. 170mm(6.5″) | Dia.450mm(17″) | 400 | 1370 x 1000 |
| SILD – 4 | 4.5ft. (1370mm) | 725mm(28.5″) | 480 | 1600 x 1000 | |||||
| SILD – 5 | 5.3ft. (1600mm) | 915mm(36″) | 550 | 1980 x 1000 | |||||
| SILD – 6 | 6ft. (1830mm) | 1115mm(44″) | 600 | 2100 x 1000 | |||||
| Bed Type | 2V & 2Flat Typed | INDUCTION Hardened & Precisely Grounded Bedways | ||
| Spindle Speeds (In V-Belt Driven) | 8 Speeds | 40 to 1000 | ||
| Spindle Speeds (In All-Geared Headstock) (OPTIONAL) | 16 Speeds | 45 to 2400 | ||
| Spindle Nose Type | Threaded 8TPI | MT-5 | A2-4 (OPTIONAL) | |
| Spindle Bore | 40mm (1.5″) | |||
| Width of Bed Gap In Front of Face Plate | 135mm (5.25″) | |||
| Cross Slide Travel | 180mm (7″) | |||
| Top Slide (Compound Slide) Travel | 110mm (4.25″) | |||
| Tool Sank Size | 20mm (0.75″) | |||
| Tailstock Ram Dia. | 38mm (1.5″) | |||
| Tailstock Quill Travel | 110mm (4.25″) | |||
| Tailstock Taper Size | MT-3 | |||
| Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM | Infinitely Variable | |||
| Nos. of Feeds for TRANSVERSE (With Change Gears) INCH & MM | ||||
| Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM | 32 / 0.068 to 1.02 mm/rev. | |||
| Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM | 32 / 0.012 to 0.185 mm/rev. | |||
| Transverse Movement | 180mm (7″) | |||
| Nos. of Threads & Range (Norton Gear Box) | 32 in INCH | 15 in MM | ||
| 4 to 60 TPI | 0.5 to 12 | |||
| Lead Screw Dia. / TPI | (1″) 25.4mm / 4TPI | |||
| Elc. Power HP Requires | 1HP / 0.75 kw | 1440 rpm | 3 Phase | 50Hz |
| Standard Accessories | Recommanded Accessories (OPTIONAL) | |
| INDUCTION Hardened & Precisely Grounded 2V & 2Flat type Bed Ways | Dog Chuck | |
| True Chuck | 1no. | Steady Rest. |
| Chuck Back Plate | 1no. | Follow Rest |
| 1HP. 3Phase, 1440 RPM Elc. Motor | 1no. | Face Plate. |
| Motor Pulley | 1no. | All-Geared Headstock |
| V-Belt | 1no. | Norton Gear Box having INCH / MM Threads |
| R/F Switch + wiring Complete | 1Set. | Electro Coolant Pump with Tank and Stand Fittings |
| Spindle Nose Sleeve | 1no. | Taper Turning Attachment |
| Dead Centers | 2nos. | Anti-Vibration Leveling Pads Set. |
| Tool Post Key | 1no. | Revolving Center |
| Service Spanner Set. | 1Set. | Machine Lamp Stand |
| Alen Keys Set | 1Set. | Quick Change Tool Post. |
| Change Gear Set INCH / MM | 1Set. | Tool Post Grinding Attachment. |
| Key Cutting Attachment. | ||
| Milling Vice. | ||
| Splash Guard | ||
| COMPLETE CNC CONTROLLED RETRO FITTING HAVING LATHE MACHINE | ||
