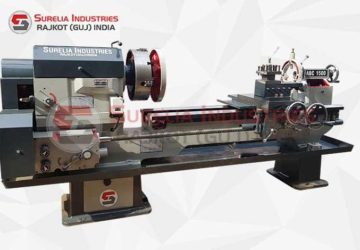

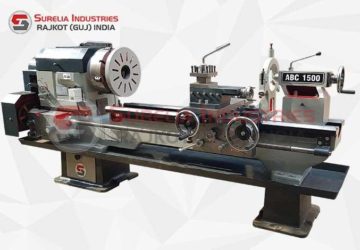

Technical Specifications | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | Bed Length | Admit Between Center | Width of Bed | Swing Dia. Over Bed | Swing Dia. Over Carriage | Swing Dia. Over Cross Slide | Swing Dia. In GAP BED | Weight | Floor Space | |||||
Center Height 304mm (12″) | KG (APPROX) | L x W | ||||||||||||
5123 | 5.5ft. (1675mm) | 555 | 12.75″ (325mm) | 555 (22″) | 455 (18″) | 390 (15.3″) | 810 (32″) | 1050 | 1980 x 1200 | |||||
7123 | 7ft. (2130mm) | 1000 | 1250 | 2440 x 1200 | ||||||||||
9123 | 9ft. (2740mm) | 1500 | 1500 | 3050 x 1200 | ||||||||||
10123 | 10ft. (3050mm) | 1850 | 1900 | 3350 x 1200 | ||||||||||
12123 | 12ft. (3660mm) | 2500 | 2150 | 4000 x 1200 | ||||||||||
14123 | 14ft. (4270mm) | 3100 | 2400 | 4600 x 1200 | ||||||||||
16123 | 16ft. (4880mm) | 3700 | 3200 | 5200 x 1200 | ||||||||||
General Specifications | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bed Typed | 2V & 2 Flat typed | Induction Hardened & Precisely Grounded Bedways | ||||||||||||
Spindle Speeds (In V-Belts Driven) | 8 Speeds / F & R | 30 to 500 rpm | ||||||||||||
Spindle Speeds (In All-Geared Driven) (OPTIONAL) | 18 Speeds / F & R | 30 to 1800 rpm | ||||||||||||
Spindle Nose (In Belt Driven) | Threaded – 6 TPI | Mt-6 | A2-6 OR A2-8 (OPTIONAL) (In All-Geared Driven) | |||||||||||
Spindle Bore | 54 mm | |||||||||||||
Width of Gap In front of Face Plate | 170mm | |||||||||||||
Cross Slide Travel | 335mm to 380mm | |||||||||||||
Top Slide (Compound Slide) Travel | 155mm | |||||||||||||
Tool Sank Size | 25mm | |||||||||||||
Tailstock Ram Dia. | 55 mm | |||||||||||||
Tailstock Quill Travel | 180mm | |||||||||||||
Tailstock Taper Size | MT – 4 | |||||||||||||
Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM | Infinitely Variable | |||||||||||||
Nos. of Feeds for TRANSVERSE (With Change Gears) INCH & MM | ||||||||||||||
Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM | 32 / 0.065 to 1.98 mm/rev. | |||||||||||||
Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM | 32 / 0.016 to 0.48 mm/rev. | |||||||||||||
Transverse Movement in MM | 335 | |||||||||||||
Nos. of Threads & Range (Norton Gear Box) | 40 in INCH | 20 in MM | ||||||||||||
2 to 60 TPI | 0.5 to 15 | |||||||||||||
Lead Screw Dia. / TPI | 38.1 / 4TPI | |||||||||||||
Elc. Motor Requires | 2HP / 3HP | 1440rpm | 3 Phase | 50Hz |
Accessories | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Standard Accessories | Optional Accessories | |||||||||||||
Induction Hardened & Precisely Grounded 2V & 2Flat type Bed-Ways | True Chuck | |||||||||||||
Dog Chuck | 1no. | Steady Rest | ||||||||||||
Chuck Back Plate | 1no. | Follow Rest | ||||||||||||
3HP. 3Phase, 1440 RPM Elc. Motor | 1no. | Face Plate | ||||||||||||
Motor Pulley | 1no. | All-Geared Headstock | ||||||||||||
V-Belt | 1no. | Norton Gear Box Having INCH & MM Threads | ||||||||||||
R/F Switch + wiring Complete | 1Set. | Electro Coolant Pump with Tank & Stand Fittings | ||||||||||||
Spindle Nose Sleeve | 1no. | Taper Turning Attachment | ||||||||||||
Dead Centers | 2nos. | Anti Vibration Leveling Ped Sets. | ||||||||||||
Tool Post Key | 1no. | Revolving Center | ||||||||||||
Service Spanner Set. | 1Set. | Machine Lamp Stand | ||||||||||||
Alen Keys Set | 1Set. | Quick Change Tool Post | ||||||||||||
Change Gear Set INCH / MM | 1Set. | Tool Post Grinnding Attachment | ||||||||||||
Oil Cane | 1no. | Key-Way Cutting Attachment with Elc. Motor | ||||||||||||
Milling Vice | ||||||||||||||
Splash Guard | ||||||||||||||
COMPLETE CNC CONTROLED RETRO FITTING HAVING LATHE MACHINE |
