All Details Of Our Product
| Technical Specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | Bed Length | Admit Between | Width of Bed | Swing Dia. Over Bed | Swing Dia. Over Carriage | Swing Dia. Over Cross Slide | Swing Dia. In GAP Bad | Weight | Floor Space | |||||
| Center Height 508mm (20″) | Approx KGs. | L x W | ||||||||||||
| 724205 | 7ft. (2130mm) | 600 | 609mm (24″) | Dia. 965mm (38″) | Dia. 800mm (32″) | Dia. 700mm (28″) | Dia. 1370mm (54″) | 3500 | 2500 x 1600 | |||||
| 924205 | 9ft. (2740mm) | 1200 | 3950 | 3100 x 1600 | ||||||||||
| 1024205 | 10ft. (3050mm) | 1500 | 4350 | 3400x 1600 | ||||||||||
| 1224205 | 12ft.(2660mm) | 2100 | 4750 | 4000x 1600 | ||||||||||
| 1424205 | 14ft. (4270mm) | 2700 | 5150 | 4600 x 1600 | ||||||||||
| 1624205 | 16ft.(4880mm) | 3300 | 5650 | 5200 x 1600 | ||||||||||
| 1824205 | 18ft. (5480mm) | 3900 | 6050 | 5800 x 1600 | ||||||||||
| 2024205 | 20ft. (6100mm) | 4500 | 6550 | 7000 x 1600 | ||||||||||
| 2424205 | 24ft. (7315mm) | 5100 | 7450 | 7600 x 1600 | ||||||||||
| 2624205 | 26ft. (7920mm) | 6700 | 7850 | 8200 x 1600 | ||||||||||
| 2824205 | 28ft.(8530mm) | 7300 | 8350 | 8800x 1600 | ||||||||||
| 3024205 | 30ft. (9150mm) | 7900 | 8750 | 9400 x 1600 | ||||||||||
| General Specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bed Typed | 2V & 2 Flat typed | Induction Hardened & Precisely Grounded Bedways | ||||||||||||
| Spindle Speeds (In V-Belts Driven) | 8 Speeds | 20 to 300 rpm | ||||||||||||
| Spindle Speeds (In All-Geared Driven) (OPTIONAL) | 16 Speeds | 12 / 380 rpm | ||||||||||||
| Spindle Nose (In Belt Driven) | 6 TPI | MT-7 | A2-8 -OR- A2-11(OPTIONAL) | |||||||||||
| Spindle Bore | Std. Bore 130mm / 155mm Available | |||||||||||||
| Tailstock Ram Dia. | 76.1 mm | |||||||||||||
| Tailstock Taper Size | MT – 5 | |||||||||||||
| Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM | Infinitely Variable | |||||||||||||
| Nos. of Feeds for TRANSVERSE (With Change Gears) INCH & MM | ||||||||||||||
| Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM | 0.065 to 1.98 mm/rev. | |||||||||||||
| Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM | 0.016 to 0.48 mm/rev. | |||||||||||||
| Transverse Movement in MM | 500 / 600 | |||||||||||||
| Nos. of Threads & Range (Norton Gear Box) | 28 in INCH | 20 in MM | ||||||||||||
| 1.5 to 22 TPI | 0.75 to 16 | |||||||||||||
| Lead Screw Dia. / TPI | 50 / 2TPI | |||||||||||||
| Elc. Motor Requires (2-Speed) | 7.5 HP / 10 HP | 960 / 1400rpm | 3Phase | 50Hz | ||||||||||
| Accessories | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard Accessories | Optional Accessories | |||||||||||||
| Induction Hardened & Precisely Ground 2V & 2Flat Type Bed Ways | True Chuck | |||||||||||||
| Dog Chuck | 1no. | Steady Rest | ||||||||||||
| Chuck Back Plate | 1no. | Follow Rest | ||||||||||||
| 7.5HP. 3Phase, 960 / 1440 RPM Elc. Motor (2- Speed) | 1no. | Face Plate | ||||||||||||
| Motor Pulley | 1no. | All-Geared Headstock | ||||||||||||
| V-Belt | 1no. | Norton Gear Box Having INCH & MM Threads | ||||||||||||
| R/F Switch + wiring Complete | 1Set. | Electro Coolant Pump with Tank & Stand Fittings | ||||||||||||
| Spindle Nose Sleeve | 1no. | Taper Turning Attachment | ||||||||||||
| Dead Centers | 2nos. | Anti Vibration Leveling Ped Sets. | ||||||||||||
| Tool Post Key | 1no. | Revolving Center | ||||||||||||
| Service Spanner Set. | 1Set. | Machine Lamp Stand | ||||||||||||
| Alen Keys Set | 1Set. | Quick Change Tool Post | ||||||||||||
| Change Gear Set INCH / MM | 1Set. | Tool Post Grinnding Attachment | ||||||||||||
| Oil Cane | 1no. | Key-Way Cutting Attachment with Elc. Motor | ||||||||||||
| Milling Vice | ||||||||||||||
| Splash Guard | ||||||||||||||

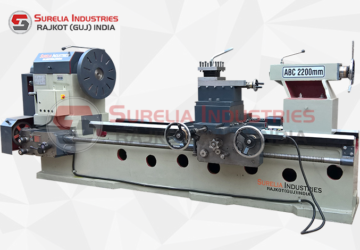

| PLANO Type Extra Heavy Duty Bed Available in all above model on request | 155mm (6″) Spindle Bore | |||||||||||||
| COMPLETE CNC CONTROLED RETRO FITTING HAVING LATHE MACHINE | ||||||||||||||
