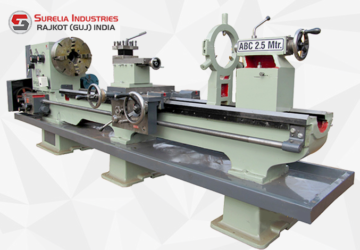

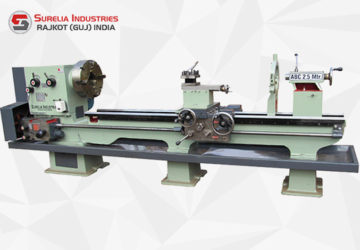

All Details Of Our Product

Technical Specifications
MODEL Bed Length Admit Between Center Width of Bed Swing Dia. Over Bed Swing Dia. Over Carriage Swing Dia. Over Cross Slide Swing Dia. In GAP BED Weight Floor Space
Center Height 380mm (15″) KG (APPROX) L x W
5153 5.5ft. (1675mm) 555mm 14.75″(375mm) 720mm (28.3″) 600mm (24″) 540mm (21″) 1010mm (39.5″) 1300 1980 x 1400
7153 7ft. (2130mm) 1000mm 1500 2440 x 1400
9153 9ft. (2740mm) 1500mm 1700 3050 x 1400
10153 10ft. (3050mm) 1850mm 2050 3350 x 1400
12153 12ft. (3660mm) 2500mm 2450 4000 x 1400
14153 14ft. (4270mm) 3100mm 2850 4600 x 1400
16153 16ft.(4880mm) 3700mm 3850 5200 x 1400
18153 18ft.(5480mm) 4300mm 4250 5800 x 1400
General Specifications
Bed Typed 2V & 2 Flat typed Induction Hardened & Precisely Grounded Bedways
Spindle Speeds (In V-Belts Driven) 8 Speeds / F & R 30 to 500 rpm
Spindle Speeds (In All-Geared Driven) (OPTIONAL) 18 Speeds / F & R 30 to 1800 rpm
Spindle Nose (In Belt Driven) Threaded – 6 TPI Mt-6 A2-6 OR A2-8 (OPTIONAL) (In All-Geared Driven)
Spindle Bore 54 mm
Width of Gap In front of Face Plate 170mm
Cross Slide Travel 335mm to 380mm
Top Slide (Compound Slide) Travel 155mm
Tool Sank Size 25mm
Tailstock Ram Dia. 55 mm
Tailstock Quill Travel 180mm
Tailstock Taper Size MT – 4
Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM Infinitely Variable
Nos. of Feeds for TRANSVERSE  (With Change Gears) INCH & MM
Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM 32 / 0.065 to 1.98 mm/rev.
Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM 32 / 0.016 to 0.48 mm/rev.
Transverse Movement in MM 335 / 380
Nos. of Threads & Range (Norton Gear Box) 40 in INCH 20 in MM
2 to 60 TPI 0.5 to 15
Lead Screw Dia. / TPI 38.1 / 4TPI
Elc. Motor Requires 2HP / 3HP 1440rpm 3 Phase 50Hz



Accessories
Standard Accessories Optional Accessories
Hardened Bed Ways True Chuck
Dog Chuck 1no. Steady Rest
Chuck Back Plate 1no. Follow Rest
3HP. 3Phase, 1440 RPM Elc. Motor 1no. Face Plate
Motor Pulley 1no. All-Geared Headstock
V-Belt 1no. Norton Gear Box Having INCH & MM Threads
R/F Switch + wiring Complete 1Set. Electro Coolant Pump with Tank & Stand Fittings
Spindle Nose Sleeve 1no. Taper Turning Attachment
Dead Centers 2nos. Anti Vibration Leveling Ped Sets.
Tool Post Key 1no. Revolving Center
Service Spanner Set. 1Set. Machine Lamp Stand
Alen Keys Set 1Set. Quick Change Tool Post
Change Gear Set INCH / MM 1Set. Tool Post Grinnding Attachment
Oil Cane 1no. Key-Way Cutting Attachment with Elc. Motor
Milling Vice
Splash Guard
COMPLETE CNC CONTROLED RETRO FITTING HAVING LATHE MACHINE
