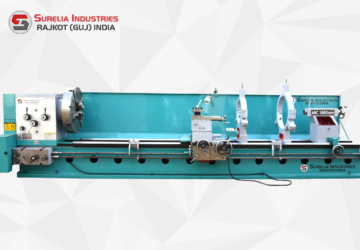

All Details Of Our Product

Technical Specifications
MODEL Bed Length Admit Between Width of Bed Swing Dia. Over Bed Swing Dia. Over Carriage Swing Dia. Over Cross Slide Swing Dia. In GAP Bad Weight Floor Space
Center Height 508mm (20″) Approx KGs. L x W
724205 7ft. (2130mm) 600 609mm (24″) Dia. 965mm (38″) Dia. 800mm (32″) Dia. 700mm (28″) Dia. 1370mm (54″) 3500 2500 x 1600
924205 9ft. (2740mm) 1200 3950 3100 x 1600
1024205 10ft. (3050mm) 1500 4350 3400x 1600
1224205 12ft.(2660mm) 2100 4750 4000x 1600
1424205 14ft. (4270mm) 2700 5150 4600 x 1600
1624205 16ft.(4880mm) 3300 5650 5200 x 1600
1824205 18ft. (5480mm) 3900 6050 5800 x 1600
2024205 20ft. (6100mm) 4500 6550 7000 x 1600
2424205 24ft. (7315mm) 5100 7450 7600 x 1600
2624205 26ft. (7920mm) 6700 7850 8200 x 1600
2824205 28ft.(8530mm) 7300 8350 8800x 1600
3024205 30ft. (9150mm) 7900 8750 9400 x 1600



General Specifications
Bed Typed 2V & 2 Flat typed Induction Hardened & Precisely Grounded Bedways
Spindle Speeds (In V-Belts Driven) 8 Speeds 20 to 300 rpm
Spindle Speeds (In All-Geared Driven) (OPTIONAL) 16 Speeds 12 / 380 rpm
Spindle Nose (In Belt Driven) 6 TPI MT-7 A2-8 -OR- A2-11(OPTIONAL)
Spindle Bore Std. Bore 130mm / 155mm Available
Tailstock Ram Dia. 76.1 mm
Tailstock Taper Size MT – 5
Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM Infinitely Variable
Nos. of Feeds for TRANSVERSE (With Change Gears) INCH & MM
Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM 0.065 to 1.98 mm/rev.
Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM 0.016 to 0.48 mm/rev.
Transverse Movement in MM 500 / 600
Nos. of Threads & Range (Norton Gear Box) 28 in INCH 20 in MM
1.5 to 22 TPI 0.75 to 16
Lead Screw Dia. / TPI 50 / 2TPI
Elc. Motor Requires (2-Speed) 7.5 HP / 10 HP 960 / 1400rpm 3Phase 50Hz
Accessories
Standard Accessories Optional Accessories
Induction Hardened & Precisely Ground 2V & 2Flat Type Bed Ways True Chuck
Dog Chuck 1no. Steady Rest
Chuck Back Plate 1no. Follow Rest
7.5HP. 3Phase, 960 / 1440 RPM Elc. Motor (2- Speed) 1no. Face Plate
Motor Pulley 1no. All-Geared Headstock
V-Belt 1no. Norton Gear Box Having INCH & MM Threads
R/F Switch + wiring Complete 1Set. Electro Coolant Pump with Tank & Stand Fittings
Spindle Nose Sleeve 1no. Taper Turning Attachment
Dead Centers 2nos. Anti Vibration Leveling Ped Sets.
Tool Post Key 1no. Revolving Center
Service Spanner Set. 1Set. Machine Lamp Stand
Alen Keys Set 1Set. Quick Change Tool Post
Change Gear Set INCH / MM 1Set. Tool Post Grinnding Attachment
Oil Cane 1no. Key-Way Cutting Attachment with Elc. Motor
Milling Vice
Splash Guard

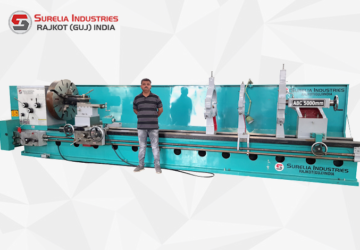

PLANO Type Extra Heavy Duty Bed Available in all above model on request 155mm (6″) Spindle Bore
COMPLETE CNC CONTROLED RETRO FITTING HAVING LATHE MACHINE
